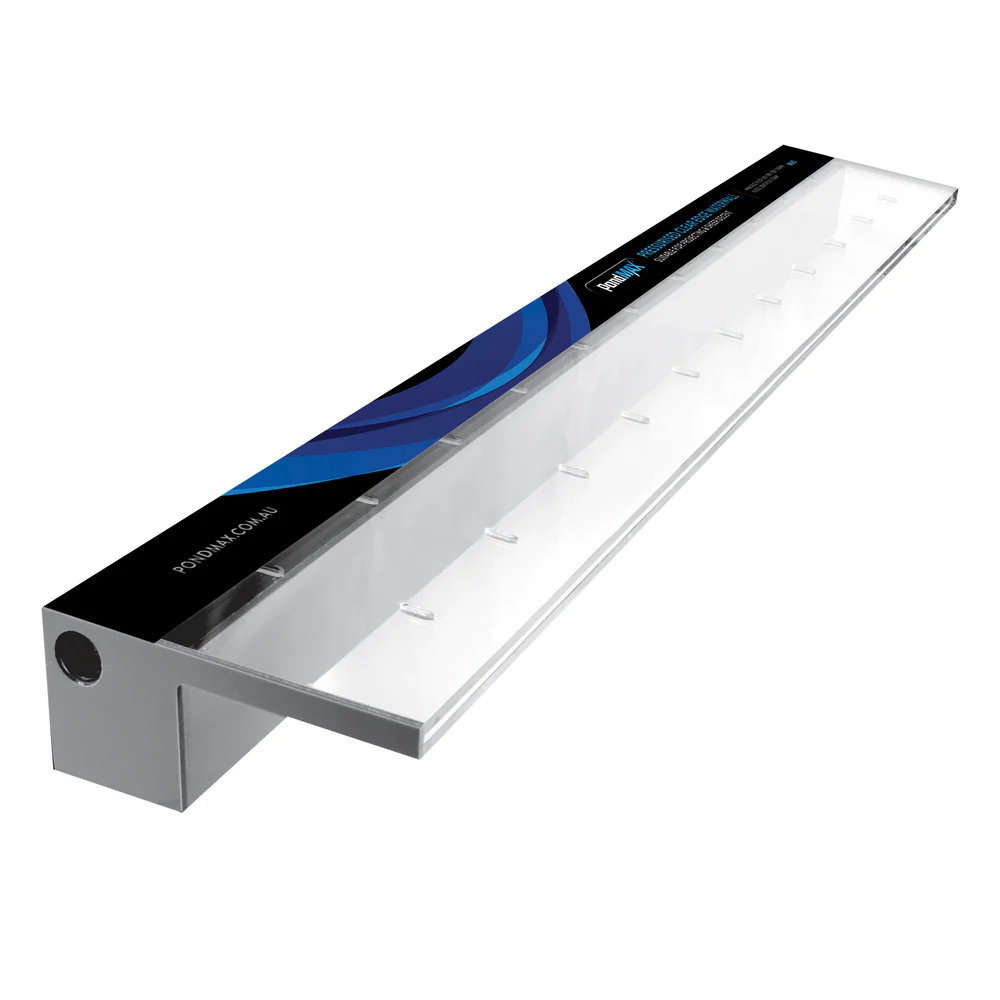

PondMAX Waterwall Blade 900mm x 125mm Lip – Back Entry

PondMAX Waterwall Blades will produce both sheer descent and projecting sheet water wall effects. The double baffle system and stabilising fins in the lip guarantee a smooth sheet of water for both sheer decent and projecting effects. These blades come with a slot for fitting an additional LED light strip (LED not included). Suitable for pond feature or swimming pool use.

The 125mm lip variants of the PondMAX clear edge waterwalls are normally used for installation at the top of walls of where cladding is not being applied. Only the 15mm lip protrudes through the wall leaving the baffle box behind the wall. Other installation variations are possible.

IMPORTANT INFORMATION: Do not leave waterwall blades in direct sunlight before or during installation. Do not apply torque to the fittings. All fittings and body of water wall unit need to be supported so fittings or unit aren't stressed.

Recommended Flow Rate (Projecting): 6000 L/H at Required head height
Recommended Flow Rate (Sheer): 3000 L/H at Required head height

Measurements: 900mm (L) x 200mm (W) x 86mm (H)
Inlet: 32mm
Nozzle / Lip Thickness: 15mm (3mm opening)
